Custom-made Clip Wire Rope | Clip Wire Rope Custom

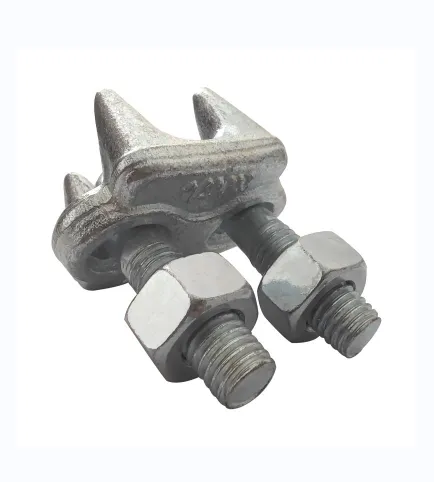

1. When choosing a rope clip, the side clearance of the U-ring should be about 1~3mm larger than the diameter of the wire rope. If the clearance is too large, the inner connection of the buckle will not be tightly connected to the wire rope, resulting in slippage.
have an accident.
2. The bolts of the buckle must be tightened, generally based on the flattened diameter of the wire rope;
3. The U-shaped part should be in contact with the wire rope head and cannot be reversed with the main rope; the rope clips should be installed in a straight and equidistant arrangement;
4. In order to check whether the rope clip joint is safe and reliable or to find out whether the wire rope joint part is slipping in time, it is generally added about 500mm behind the last rope clip.
A rope clamp, and release the wire rope head into a "safety bend", if the wire rope joint slips, the phenomenon that the "safety bend" is straightened can be intuitively displayed.
take action.

When using the wire rope clip, first loosen the wire rope or galvanized iron wire on it, fix it on the cross arm, clamp the wire with the wire clamp, and then pull the special wrench. Due to the anti-reversal effect of the pawl, the wire rope or galvanized iron wire is gradually wound around the ratchet drum to tighten the wire. Fasten the tightened wire to the insulator. Then release the pawl first to loosen the wire rope or galvanized iron wire, then loosen the wire clamp, and finally wind the wire rope or galvanized iron wire around the drum of the ratchet.
Application fields of wire rope clip: machinery and equipment for infrastructure projects such as construction, highways, bridges, metallurgy, mining, slope tunnels, shaft management and protection.

The working principle of the wire rope tensioner is through the ratchet transmission principle. The wire rope is clamped by the ratchet from the middle, and the ratchet is rotated by the action of the handle. The wire rope is tightened with the rotation of the ratchet. It is more firm and ensures the operation safety during use.
