Din 741 Malleable Wire Rope Clips

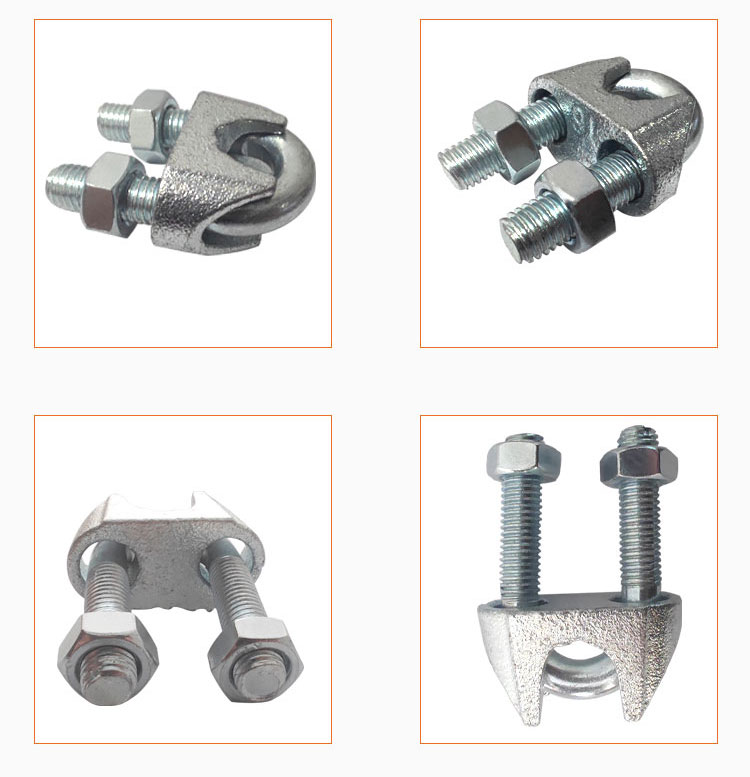

Product Display

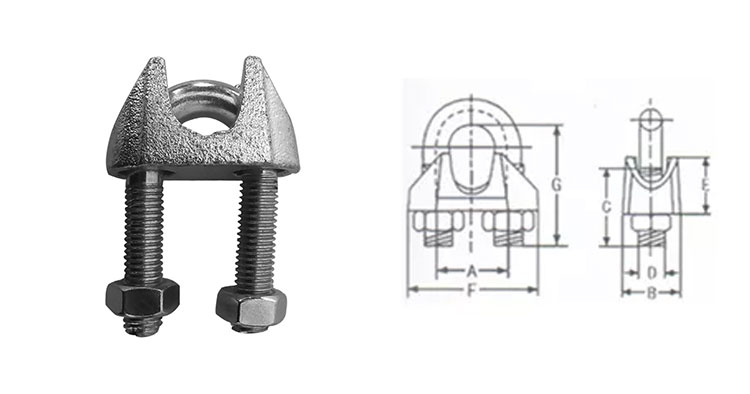

Parameter
| Rope Size(mm) | Dimensions(mm) | Weight Each (kg/pc) | ||||||
| A | B | C | D | F | G | |||
| 3 | 9 | 10 | 12 | 4 | 21 | 20 | 0.014 | |
| 5 | 11 | 11 | 13 | 5 | 23 | 24 | 0.015 | |
| 6.5 | 13 | 12 | 15 | 5 | 26 | 28 | 0.021 | |
| 8 | 16 | 14 | 19 | 6 | 28 | 34 | 0.041 | |
| 10 | 19 | 18 | 22 | 8 | 34 | 42 | 0.068 | |
| 11 | 20 | 19 | 22 | 8 | 36 | 54 | 0.072 | |
| 13 | 24 | 23 | 30 | 10 | 42 | 55 | 0.130 | |
| 14 | 25 | 23 | 30 | 10 | 44 | 57 | 0.135 | |
| 16 | 29 | 26 | 33 | 12 | 50 | 63 | 0.210 | |
| 19 | 32 | 29 | 38 | 12 | 54 | 75 | 0.280 | |
| 22 | 37 | 33 | 44 | 14 | 61 | 85 | 0.040 | |
| 26 | 41 | 35 | 45 | 14 | 65 | 95 | 0.440 | |
| Service | Your inquiry will be replied within 12 hours. |
| Product name | Din 741 Malleable Wire Rope Clips |
| Place of origin | Shandong,China. |
| Brand | LS Brand |
| Material | Malleable(Carton steel,Alloy Steel,Stainless steel304/316). |
| Size | 3-40MM |
| Surface | Electro Galvanized(Hot Dip Galivanized) |
| Standard | DIN741 |
| Grade | None |
| Stock | There are emergency stocks for regular sizes. |
| Sample | The sample is free,the freight should on your account before your first order. |
| Packing method | PP bag+pallet(Catton+pallet). |
| Payment term | 30% advanced by T/T,the balance should be paid after see the copy of the B/L;L/C at sight;Western Union. |
| Delivery time | Usually within 15-30days according to your required size&quantity. |
| Using range | Fastener in Industry and Construction;Suitable for wire rope. |
Product Details
Manufacturing Processes
Customize Service
