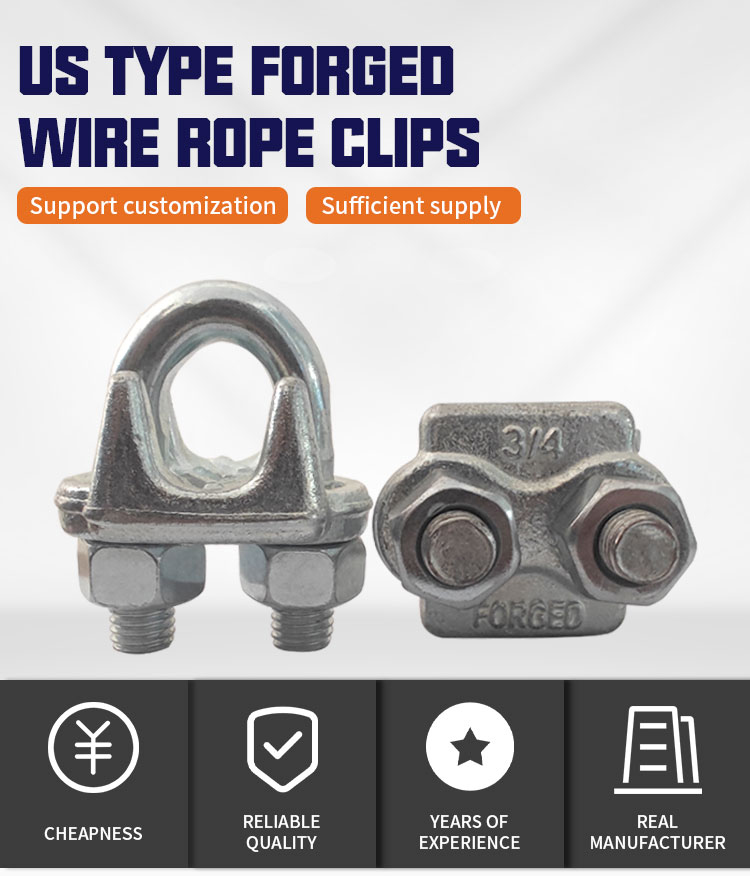

Hot Sale Galvanized Us Type Drop Forged Wire Rope Clips 3/8"
Product Display
Parameter
| LS U.S. Type Forged Wire Rope Clips | ||||||||
| Rope size(in) | Dimensions in(mm) | Weight Each |
||||||
| A | G | F | D | E | ||||
| 3/16 | 0.59 | 0.97 | 1.16 | 0.25 | 0.50 | 0.045 | ||
| 1/4 | 0.75 | 1.03 | 1.44 | 0.31 | 0.66 | 0.091 | ||
| 5/16 | 0.88 | 1.38 | 1.60 | 0.38 | 0.72 | 0.136 | ||
| 3/8 | 1.00 | 1.50 | 1.94 | 0.44 | 0.91 | 0.213 | ||
| 7/16 | 1.19 | 1.88 | 2.28 | 0.50 | 1.03 | 0.345 | ||
| 1/2 | 119 | 1.88 | 2.28 | 0.50 | 1.13 | 0.363 | ||
| 9/16 | 1.31 | 2.25 | 2.50 | 0.56 | 1.22 | 0.472 | ||
| 5/8 | 1.31 | 2.38 | 2.50 | 0.56 | 1.34 | 0.481 | ||
| 3/4 | 1.50 | 2.75 | 2.84 | 0.62 | 1.41 | 0.680 | ||
| 7/8 | 1.75 | 3.12 | 3.16 | 0.75 | 1.59 | 0.960 | ||
| 1 | 1.88 | 3.50 | 3.47 | 0.75 | 1.78 | 1.180 | ||
| 1 1/8 | 2.00 | 3.88 | 3.59 | 0.75 | 1.91 | 1.32 | ||
| 1 1/4 | 2.31 | 4.25 | 4.13 | 0.88 | 2.19 | 1.95 | ||
| 1 3/8 | 2.38 | 4.63 | 4.19 | 0.88 | 1.31 | 2.09 | ||
| 1 1/2 | 2.59 | 4.94 | 4.44 | 0.88 | 2.44 | 2.45 | ||
| 1 5/8 | 2.75 | 5.31 | 4.75 | 1.00 | 2.66 | 3.18 | ||
| 1 3/4 | 3.06 | 5.75 | 5.28 | 1.13 | 2.94 | 4.20 | ||
| 2 | 3.38 | 6.44 | 5.88 | 1.25 | 3.28 | 5.90 | ||
| 2 1/4 | 3.88 | 7.13 | 6.38 | 1.25 | 3.19 | 7.26 | ||
| 2 1/2 | 4.13 | 7.69 | 6.63 | 1.25 | 3.69 | 8.62 | ||
| Service | Your inquiry will be replied within 12 hours. |
| Product name | Forged G450 Us Type Wire Rope Clip Clamp Grip |
| Place of origin | Shandong,China. |
| Brand | LS Brand |
| Material | Carton steel(Alloy Steel,Stainless steel304/316). |
| Size | 3/16-2 1/2 |
| Surface | Electro Galvanized(Hot Dip Galivanized) |
| Standard | U.S TYPE |
| Grade | None |
| Stock | There are emergency stocks for regular sizes. |
| Sample | The sample is free,the freight should on your account before your first order. |
| Packing method | PP bag+pallet(Catton+pallet). |
| Payment term | 30% advanced by T/T,the balance should be paid after see the copy of the B/L;L/C at sight;Western Union. |
| Delivery time | Usually within 15-30days according to your required size&quantity. |

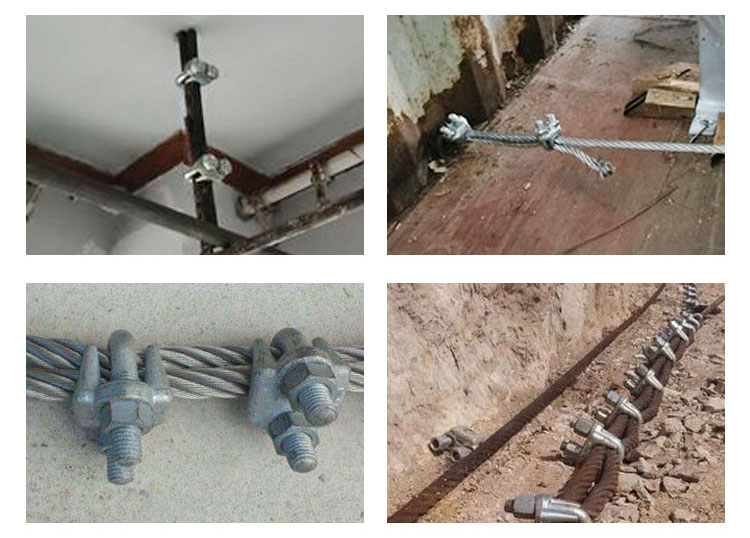

| Using range | Fastener in Industry and Construction;Suitable for wire rope. |

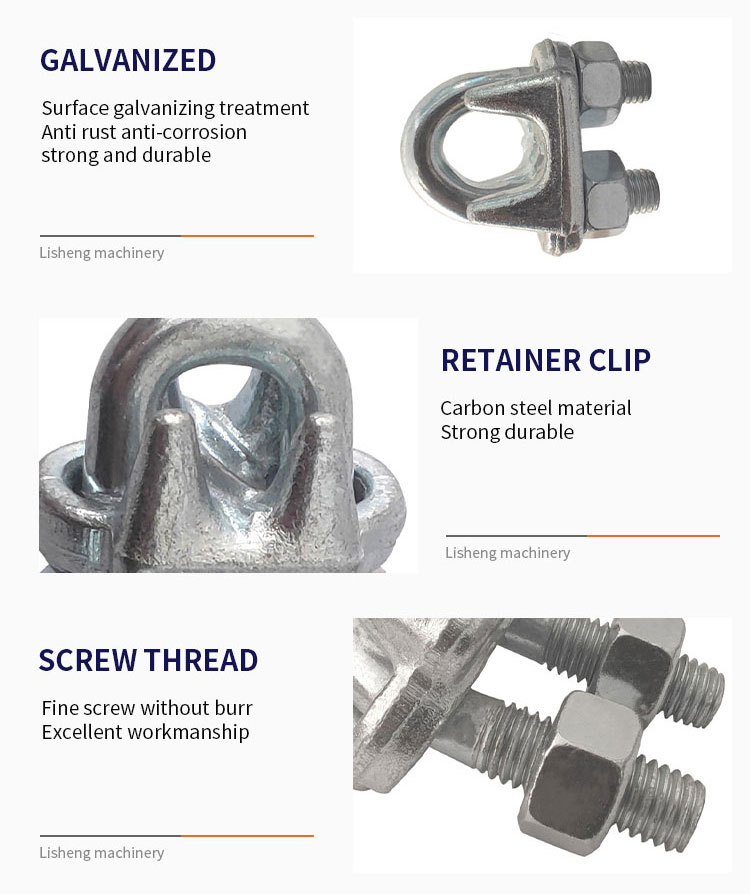

Product Details
Manufacturing Processes
Customize Service
