What are eyebolts?

What are eyebolts?

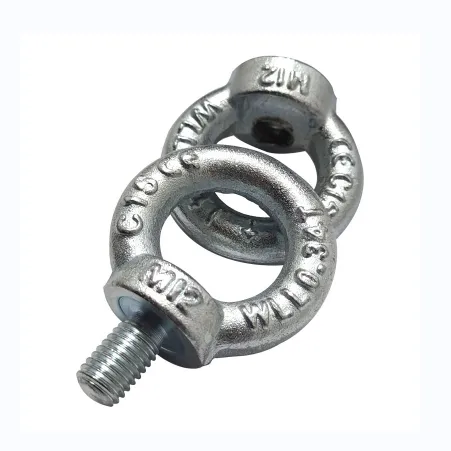

An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.

Get A Quote
Features

Why Choose Us?

Business philosophy

The company has always adhered to the "quality" for survival, reputation, as the leading business philosophy, has an excellent team of engineers, perfect production equipment and after-sales service.

After sales service and technical assistance

After-sale service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs with response within 24 hours.

Personalized service

Quality assurance,reaasonable prices, service country of origin, experience technical staff, excellent product performance.

Stock

There are emergency stocks for regular size perennially.This to save time for you.

about us

We Have The Best Solutions for Your Business

Shandong Lisheng Machinery Co., Ltd. is a new generation enterprise dedicated to the hardware industry. It is located in Jining City, Shandong Province, the hometown of Confucius and Mencius. The company is a professional hardware supporting enterprise integrating design, research and development, production and sales. The main products are chains, wire ropes and their accessories: shackles, turn buckles, clips, rings, snap hooks and other forgings and castings, and accept drawings and samples for processing.

Read More

Types of Eye bolt

Forged: These eye bolts are forged as one piece rather than formed and have a continuous eye and shoulder. This design enables them to be used for heavier loads.
Plain or Regular: These eye bolts are used for vertical loading only and are not recommended for angular lifting. They can also be used with tie-downs to secure loads and as wire guides.Collared: Collared or shouldered eye bolts are fully threaded and reinforced with a collar or shoulder. When installed the shoulder sits flush with the mounting surface and offers more stability to the base of the eye and prevents bending and deforming. This design means that these eye bolts can be used for angular loads of up to 45°.

Commercial or Load Rated: These eye bolts are designed for use in lightweight non-load bearing applications such as securing ropes or cables to posts and are not used to lift or suspend an object. Load rated eye bolts often have embossed stamping on the body of the eyebolt stating the working load limit (WLL), batch number and thread size.Machinery: Machinery eye bolts are forged and shouldered and have threads with a high holding strength. These eye bolts have a heavy-duty design and are made to high specifications and standards. Applications include connection points in rigging applications and, due to their shouldered design, can be used to angled loads.Swivel: Swivel eye bolts can rotate 360°. The eye of the bolt can also move around which improves flexibility in the attachment. Swivel eye bolts are used in heavy applications and are designed to lift from various angles.An eyebolt can also be galvanised, anodised or plated to prevent corrosion. The most common material is stainless steel as it is corrosion resistant and makes the eyebolt suitable for use in outdoors or offshore applications such as marine applications and in the oil, gas or wind energy sectors.

User Reviews

What users say about Us

I am very satisfied for top quality product,quick response and attention provided by this seller and company,Thank you!

Christopher Anderson

Quikly send,very good communication,all is ok,without problem.

Ashley Thomas

Very good quality,fast and safe shipment,Nothing to improve

Daniel Jackson

Great seller!Always online and helpful.Speedy delivery,very good and secure packing.

Jennifer White
Frequently Asked Question

Do you have any question?

Eye bolts can be used as a connection point for rigging, anchoring, pulling, pushing, or hoisting applications. Although eye bolts are commonly used in industrial applications, they're also commonly misunderstood or used incorrectly.

For example, an eye bolt with a 1/4 inch shank can typically hold up to 600 pounds at a straight pull (no angle). However, at a 15 degree angle, the maximum weight capacity drops to 480 pounds (80% of the “straight pull” weight capacity)

Ring bolts are one of eye bolts and it has a captive ring passing through the eye of the head to secure a chain, etc. more flexibly than eye bolts. Eye screws are similar to eye bolts but it is with wood screw to use for attaching an eye to wood or plastic structures.
